How to model Solid Dome with frame

Post by kace12 on Mon Aug 11, 2014 1:42 am

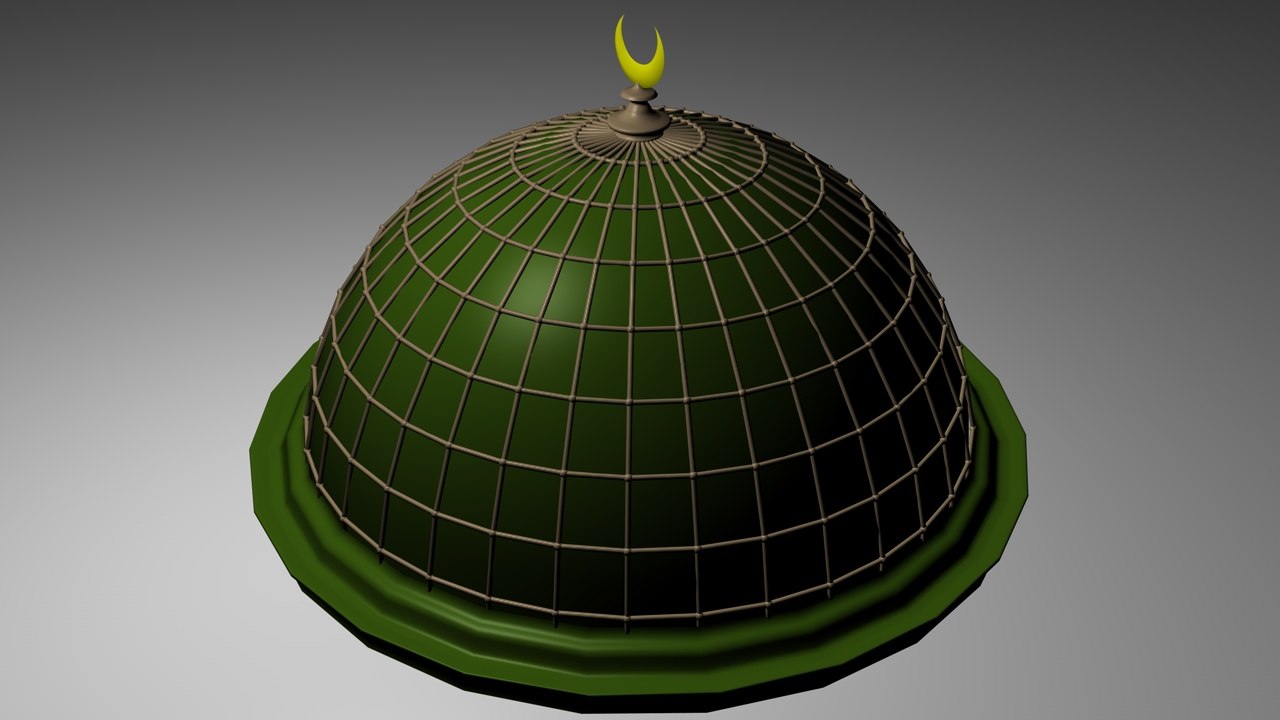

Mga Sir baka po may tutorial kayo para magawa ko po yan, Sketchup po or Autocad thank you po in advance.
avatar
kace12
CGP Newbie
CGP Newbie

Number of posts : 31
Age : 28
Location : riyadh k.s.a
Registration date : 06/03/2012

View user profile

Back to top Go down

Re: How to model Solid Dome with frame

Post by qcksilver on Mon Aug 11, 2014 2:33 am

mas madali sana sa 3dsmax sir, gawa ka lang ng sphere, tapos gawin mong hemisphere, edit poly select edge tapos create shape, ung bagong shape gawin mo renderable spline
avatar
qcksilver
CGP Guru
CGP Guru

Number of posts : 1937
Age : 34
Location : bahrain/pampanga
Registration date : 08/02/2010

View user profile

Back to top Go down

Re: How to model Solid Dome with frame

Post by dongding on Mon Aug 11, 2014 5:22 am

Sir, Mas madali yan sa AutoCAD, Command: Polyline click your basepoint then type A (for ARC) at gawa ka lang ng Half Circle with decorative base below (Cornice) hanggang sa closed (C) command enter. After creation ng Polyline mo. Command: REVOLVE at 360° para totally maging DOME hollow solid. At sa frame construction naman, Command: SECTION click (depende sa XYZ coordinates position ng cutting mo either xy, zx, or yz para ibigay ang figure ng section ng solid mo at bawat section mo Command: Explode at para maging polyline sila lahat, then gawa ka ng constant typical size circle or square para magamit sa  SWEEPing sa lahat ng Polyline mo. Try mo lang Sir. Challenge yan at exiting ang paggawa at construction n'yan.  2thumbsup ..Kaya mo yan....Smile
avatar
dongding
CGP Apprentice
CGP Apprentice

Number of posts : 227
Age : 40
Location : Batangas
Registration date : 16/01/2012

View user profile

Back to top Go down

Re: How to model Solid Dome with frame

Post by sentido on Mon Aug 11, 2014 6:38 pm

in 3ds max..to create the frame..  create hemisphere from sphere then apply lattice modifier.. adjust settings of lattice modifier.. done
avatar
sentido
CGP Apprentice
CGP Apprentice

Number of posts : 346
Age : 34
Location : manila
Registration date : 05/08/2009

View user profile

Back to top Go down

Re: How to model Solid Dome with frame

Post by kace12 on Mon Aug 11, 2014 11:39 pm

Thanks po mga Sir, subukan ko po lahat ng suggestion nyo more power po sa inyo.
avatar
kace12
CGP Newbie
CGP Newbie

Number of posts : 31
Age : 28
Location : riyadh k.s.a
Registration date : 06/03/2012

View user profile

Back to top Go down

Re: How to model Solid Dome with frame

Post by kace12 on Tue Aug 12, 2014 12:49 am

dongding wrote:Sir, Mas madali yan sa AutoCAD, Command: Polyline click your basepoint then type A (for ARC) at gawa ka lang ng Half Circle with decorative base below (Cornice) hanggang sa closed (C) command enter. After creation ng Polyline mo. Command: REVOLVE at 360° para totally maging DOME hollow solid. At sa frame construction naman, Command: SECTION click (depende sa XYZ coordinates position ng cutting mo either xy, zx, or yz para ibigay ang figure ng section ng solid mo at bawat section mo Command: Explode at para maging polyline sila lahat, then gawa ka ng constant typical size circle or square para magamit sa  SWEEPing sa lahat ng Polyline mo. Try mo lang Sir. Challenge yan at exiting ang paggawa at construction n'yan.  2thumbsup ..Kaya mo yan....Smile


Sir maraming salamat sinubukan ko ung procedure mo atlast nagawa ko na. Ganun lang pala pinahirapan ako mag-isip. thanks uli sir  2thumbsup
avatar
kace12
CGP Newbie
CGP Newbie

Number of posts : 31
Age : 28
Location : riyadh k.s.a
Registration date : 06/03/2012

View user profile

Back to top Go down
