Black spots in interior scene.

Post by Critique1407 on Thu Apr 02, 2009 10:32 pm

Sir. paano po ba maayos ung may mga block spots sa scene? ung parang mga dumi na kulay itim? Help naman po sa interior mg masters thumbsup
avatar
Critique1407
CGP Apprentice
CGP Apprentice

Number of posts : 288
Age : 31
Location : Pampanga
Registration date : 09/11/2008

View user profile

Back to top Go down

Re: Black spots in interior scene.

Post by kurdaps! on Thu Apr 02, 2009 10:33 pm

Please post the image to understand it clearly. Very Happy

_________________
Happy moments:PRAISE GOD. Difficult  moments:SEEK GOD.
Quiet moments:WORSHIP GOD. Painful moments:TRUST GOD.
Every moment:THANK  GOD.

avatar
kurdaps!
Super Moderator
Super Moderator

Number of posts : 5059
Age : 39
Location : aan-dxb-aan
Registration date : 18/09/2008

View user profile http://www.sherwinboston.com

Back to top Go down

Re: Black spots in interior scene.

Post by Butz_Arki on Thu Apr 02, 2009 10:37 pm

yah! better post your settings & render scene...... Twisted Evil
avatar
Butz_Arki
Superbeast
Superbeast

Number of posts : 4080
Age : 36
Location : Guinea Ecuatorial,United States of Africa
Registration date : 18/09/2008

View user profile Http://butzoy.multiply.com

Back to top Go down

Re: Black spots in interior scene.

Post by alwin on Thu Apr 02, 2009 11:06 pm

i post mo sir kasi nangyari rin sa akin yun at na solve naman!
avatar
alwin
CGP Expert
CGP Expert

Number of posts : 2167
Age : 44
Location : basurero sa cebu
Registration date : 22/01/2009

View user profile

Back to top Go down

Re: Black spots in interior scene.

Post by 3D newbie on Fri Apr 03, 2009 4:08 am

hi po sir.....
i dont know if e2 ung prob. mo sir...ung black n parang shdow or parang mantsa sa kulay or sa materials....
if un ung prob. mo po sir.....adjust u lng po u vray light...or if anong gmit u n light..adjust u po ung sampling subd..to higher preset...the default is 8...make it mga 40 but if meron prin itaas u pa ung setting ulit...hope nkatulong po ako sa prob. mo sir...

[img][/img]
avatar
3D newbie
CGP Apprentice
CGP Apprentice

Number of posts : 305
Location : Valenzuela City Philippines
Registration date : 01/04/2009

View user profile http://adiemar-zafe.wix.com/portfolio

Back to top Go down

Re: Black spots in interior scene.

Post by gilbs on Fri Apr 03, 2009 6:30 am

Critique1407 wrote:Sir. paano po ba maayos ung may mga block spots sa scene? ung parang mga dumi na kulay itim? Help naman po sa interior mg masters thumbsup

sir try mo rin lagyan ng check yun sub-pixel mapping sa Vray:COlor mapping. I hope it would help.
avatar
gilbs
CGP Apprentice
CGP Apprentice

Number of posts : 258
Age : 40
Location : dubai,uae
Registration date : 25/02/2009

View user profile

Back to top Go down

Re: Black spots in interior scene.

Post by render master on Sat Apr 04, 2009 1:37 am

unless no image reference and settings posted, its hard to know... post mo na lang sir. kase maraming factor ang puede panggalingan nyan.
avatar
render master
Game Master
Game Master

Number of posts : 3268
Age : 97
Location : riyadh, saudi arabia
Registration date : 27/09/2008

View user profile

Back to top Go down

Re: Black spots in interior scene.

Post by Critique1407 on Sat Apr 04, 2009 2:17 am

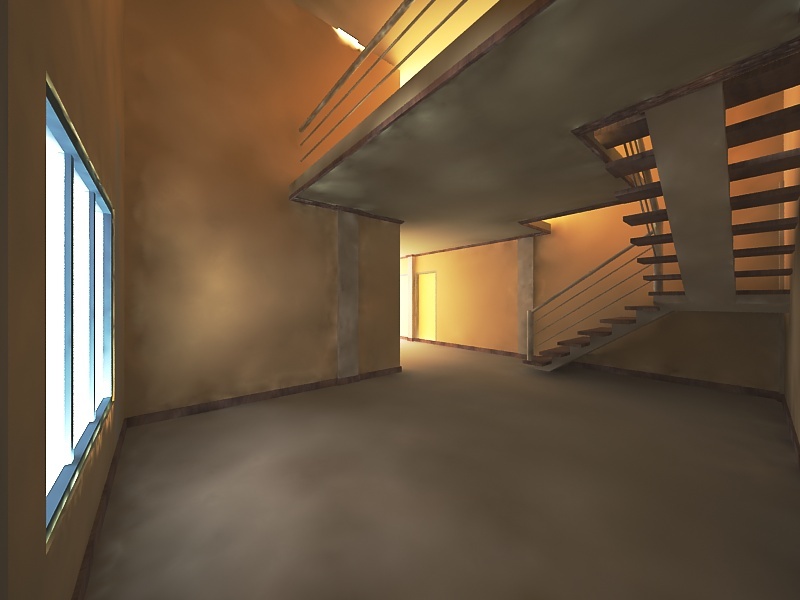

Pasensya na po, ah. kakaupload lng po nito. Nagmamadali po kasi ako kahapon kaya di ko naasikaso ipost to agad. ito po ung problem ng Sample scene ko. Di ko po alam saan ang problem nito...
avatar
Critique1407
CGP Apprentice
CGP Apprentice

Number of posts : 288
Age : 31
Location : Pampanga
Registration date : 09/11/2008

View user profile

Back to top Go down

Re: Black spots in interior scene.

Post by Critique1407 on Sat Apr 04, 2009 2:20 am

tnx sir 3D newbie. Pero paano mo malalaman if ilang samples lng ang ialagay mo sa vray light din? Follow up ko po ung settings mamaya mga pre.
avatar
Critique1407
CGP Apprentice
CGP Apprentice

Number of posts : 288
Age : 31
Location : Pampanga
Registration date : 09/11/2008

View user profile

Back to top Go down

Re: Black spots in interior scene.

Post by Guest on Sat Apr 04, 2009 10:55 am

@TS
bro add ka rin ng number of passes... makakatulong din un para mabawasan ang blotches thumbsup

Guest
Guest


Back to top Go down

Re: Black spots in interior scene.

Post by Critique1407 on Sun Apr 05, 2009 8:06 pm

Like ilang passes po sir?
avatar
Critique1407
CGP Apprentice
CGP Apprentice

Number of posts : 288
Age : 31
Location : Pampanga
Registration date : 09/11/2008

View user profile

Back to top Go down

Re: Black spots in interior scene.

Post by bokkins on Sun Apr 05, 2009 9:37 pm

How about post mo din ang settings na gamit mo dito. para madetermined kagad natin kung san magdadagdag-bawas. Smile
avatar
bokkins
Special Ops
Special Ops

Number of posts : 10322
Registration date : 18/09/2008

View user profile Http://bokkins3d.blogspot.com/

Back to top Go down

Re: Black spots in interior scene.

Post by edwardbctech on Sun Apr 05, 2009 9:45 pm

gamit ka ser ng adaptive DMC image sampler
min sudivs:1
max sudivs:100

tapos Color mapping ,exponential ( iwas sa sunog)
dark multiplier: 3.8
bright multiplier : 2.6

vray light cache
subdivs : 1200
Sample size : 0.002 or 0.001 (kung malakas un pc mo)
no. of passes: 3 (ok na)

sa settings, vray DMC Smapler
adaptive amount : 0.85
Noise thresholds : 0.002

minimum samples : 8
global subdivs mulitplier : 2.0

save ka ng prepass ng irradiance map and light cache ( kahit low lang kc sini save mo yung light and materials )

yan yung settings para matangal yung mga splotches sana ser makatulong tong settings gud luck
avatar
edwardbctech
CGP Newbie
CGP Newbie

Number of posts : 64
Age : 43
Location : Singapore
Registration date : 02/11/2008

View user profile

Back to top Go down

Re: Black spots in interior scene.

Post by v_wrangler on Sun Apr 05, 2009 11:18 pm

ya know - the spots or the leaks means that you have very low GI hemispherical subdivs.

One thing I'd suggest is to try first using the irradiance presets , low, med then onwards. Do not play around with the custom settings if you do not know how to use them. There's a reason why the presets are there.

Regarding edward's settings above:

A global subdivision value of 2 means all the local settings are multiplied by a factor of 2. The setting above is what you call the universal setting (min 1 max 100) which will override almost everything. Its a sure fire flickerless approach but you better be ready for longer rendering times.

I personally use DMC but around a min or 2-3 and max of 6 to 9. And my material glossiness ranges from 24 to 32.

I know I just made you confused even more.
In the meantime - adjust the irradiance settings and see if that improves the rendering quality.
avatar
v_wrangler
CGP Loverboy
CGP Loverboy

Number of posts : 1993
Age : 47
Location : Northern Mountains
Registration date : 29/03/2009

View user profile http://www.maxworksdigital.com

Back to top Go down

Re: Black spots in interior scene.

Post by arkiedmund on Sun Apr 05, 2009 11:27 pm

regarding edward's setting too...I can actually get away by just setting my light cache subdivision to 500, and the sample size is just at the default, 0.01.

i set it to medium, then go to custom and set my:

HSph subdivs: 60
Interp samples: 40, but most of the time they are all in default

then set my noise threshold under rQMC Sampler to 0.001

The only once i mess is my light subdivisions, which are set at 25.

Hope this helps....i stand corrected by the way if some of these are incorrect.

_________________
This space intentionally left blank
avatar
arkiedmund
Manager
Manager

Number of posts : 3951
Age : 44
Location : Las Piñas
Registration date : 19/09/2008

View user profile

Back to top Go down

Re: Black spots in interior scene.

Post by edwardbctech on Mon Apr 06, 2009 1:47 am

srry "Critique1407" ndi ko kinonsider yung pc maaring tama din sila kc yan yung settings ko dito sa office ( medyo mahigpit dito sa office ayaw nila makakita ng mga splotches kaya mataas yung value ng settings ko)
avatar
edwardbctech
CGP Newbie
CGP Newbie

Number of posts : 64
Age : 43
Location : Singapore
Registration date : 02/11/2008

View user profile

Back to top Go down

Re: Black spots in interior scene.

Post by Guest on Mon Apr 06, 2009 2:06 am

Critique1407 wrote:Like ilang passes po sir?

6 to 8 will be sufficient enough bro Very Happy

Guest
Guest


Back to top Go down

Re: Black spots in interior scene.

Post by Guest on Mon Apr 06, 2009 3:11 am

Try to check also some overlapping ng poly. thumbsup
Napansin ko din sa scene may window sa left side ng image which i assume na dun galing yung light source.Try mo sir ng hwag idikit yung vray light sa kahit na anong poly either ipasok mo right after the window or move it back ward.kung nsa labas sya bro check mo din yung material ng window. Then yeah add more passes.

Guest
Guest


Back to top Go down

Re: Black spots in interior scene.

Post by cubi_o: on Mon Apr 06, 2009 3:58 am

aside sa suggestion nila sir. nakita ko sa pinost mo na settings doon sa vray modifer...

"tick" mo yung *Store Irridiance Map* sa vray settings.
avatar
cubi_o:
The Hobbyist
The Hobbyist

Number of posts : 1210
Registration date : 21/09/2008

View user profile

Back to top Go down

Re: Black spots in interior scene.

Post by dpyxl on Mon Apr 06, 2009 7:10 am

@Critique1407

post mo details if there's improvement now, apply it and observe..
then send us update on your works, specially the two image you posted..

cheers dahil madaming nagshare ng tips ngaun..

dpyxl
CGP Apprentice
CGP Apprentice

Number of posts : 577
Age : 35
Location : Bahrain
Registration date : 16/10/2008

View user profile

Back to top Go down

Re: Black spots in interior scene.

Post by Critique1407 on Mon Apr 06, 2009 9:17 pm

Tnx po sir edwardbctech. Mga sir eto po ung settings ko sa IR
HSph subdivs 24
interpolation samples 24
Light cache subd: 500
Environment
GI Environment=HDRI
Passes=2
Color mapping=Linear
gamma=2.2
then the rest hindi ko na pinapakealaman... hehe
Panu kasi gusto ko magexplore ng settings na mabilis tsaka maganda... di ko pala dapat pakialaman maxado ung mga settings. Tas Linear Work Flow ung ginagamit kong procedure kasi contorolled naman sa Frame buffer. Try ko po ung mga sinabi nyo. kaya lng. help naman po sa pag intindi ng maayos na IR settings.
avatar
Critique1407
CGP Apprentice
CGP Apprentice

Number of posts : 288
Age : 31
Location : Pampanga
Registration date : 09/11/2008

View user profile

Back to top Go down

Re: Black spots in interior scene.

Post by Butz_Arki on Mon Apr 06, 2009 10:52 pm

nice comments & suggestions bro...i always use min 3 & max 9 in dmc sampler rollout..


v_wrangler wrote:ya know - the spots or the leaks means that you have very low GI hemispherical subdivs.

One thing I'd suggest is to try first using the irradiance presets , low, med then onwards. Do not play around with the custom settings if you do not know how to use them. There's a reason why the presets are there.

Regarding edward's settings above:

A global subdivision value of 2 means all the local settings are multiplied by a factor of 2. The setting above is what you call the universal setting (min 1 max 100) which will override almost everything. Its a sure fire flickerless approach but you better be ready for longer rendering times.

I personally use DMC but around a min or 2-3 and max of 6 to 9. And my material glossiness ranges from 24 to 32.

I know I just made you confused even more.
In the meantime - adjust the irradiance settings and see if that improves the rendering quality.
Twisted Evil
avatar
Butz_Arki
Superbeast
Superbeast

Number of posts : 4080
Age : 36
Location : Guinea Ecuatorial,United States of Africa
Registration date : 18/09/2008

View user profile Http://butzoy.multiply.com

Back to top Go down

Re: Black spots in interior scene.

Post by jhames joe albert infante on Tue Apr 07, 2009 4:26 am

nako ganto rin problema ko, buti nlang meron dito!!! hehe thanks cgpeeeps!!
